Week 7 - Brinkley

 This week was shakedowns, bench top testing, and more shakedown designs. Our materials all hadn't come for some of our shakedowns, so we focused on our bench top testing to begin, then we designed more shakedowns.

BenchTop Testing

Our bench top testing is done on the Ahmed valve to see how it preforms when we can control the flow, resistance, and pressure. We had to create an encasing for the Ahmed to simulate fibrosis and add it to our bench test. Here are a few pictures of Kierstin and I working on the setup, and get the flow sensor to work in our system. Fady is working on the pressure sensors, so we will be able to execute this bench top testing on Wednesday during class time. This set up took so long because we had to find supplies in Dr. Rickard's lab that we could experiment with and see if they would fit in our set up.


ShakeDown #1

The first shakedown we were able to do with the supplies we had was seeing how water flowed through a tube when it was partially blocked with different size "blebs". Using stretching tubing, and various size caps in the lab we were able to simulate this. We put a syringe on one end of the tube, and filled it with water, applying pressure. We saw that even if the cap was pretty tight, some water was able to slow through when given enough pressure. This will help us moving forward in our design.

TM for another shakedown:

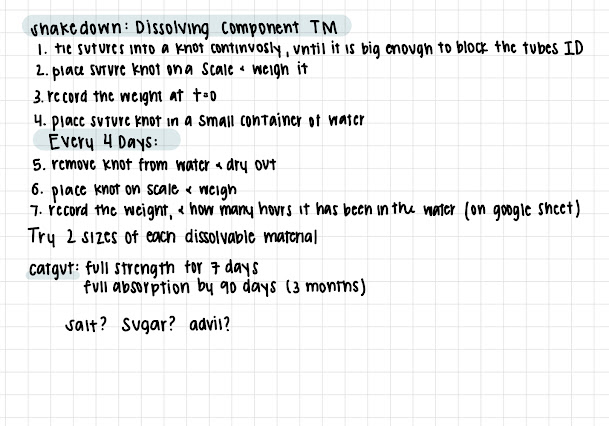

Below I have attached exactly how we are going to test the dissolving component, and the known dissolving constant of catgut. Through out this semester we are going to see if we can measure how quickly are various dissolvable sutures disappear.




Comments

Post a Comment

Popular posts from this blog

Week #3 - Brinkley Brooks

This week consisted of a lot of brainstorming, planning, and researching. I also contacted the client multiple times to figure out a shake down test we will be doing soon, and to update our deliverable 1 and 3. I also worked on making tasks and timeline for deliverable 2.  Brainstorm:  Decided on a remolded Ahmed valve with rubber material resistance (elastic) with a possible dissolving factor. This will be a combination of strategy 1 and 3.  Elastic Resistance  - most similar to Ahmed valve, but will change the resistance post fibrosis to have a better success rate 2. Magnetic Resistance  - uses a magnet to open and close a valve to vary the flow 3. Dissolvable Resistance  - Using a material that over time dissolves, so that once fibrosis occurs, the part of the valve that doesn't need to be there will be gone Client Meeting Notes:   Here are the notes I took during the client meeting. We discussed the schematic that we will be following for our shakedown, and the principles behin
Read more

Semester 2 Week 12 - Brinkley

 This week in class we discussed with Gordon what needed to be changed and updated on the poster. The notes he had for us were to better explain the reasoning for the three valves and what issues they solve. We updated the poster with these images and explanations.  During lab time, data was collected on our prototype. We were able to find when the 3 valves open and at what pressures. Valve 3 seems to have a defect because even at extremely high pressures it does not open. This is not a fault in our design, but is caused by using faulty Ahmed valves. Here is the data that we collected from class.  Kierstin and I had a meeting on what needed to get changed in the poster, and here are the meeting notes:  After the poster was finished, I began working on our final presentation. I looked over the requirements and began creating an outline for the flow of the presentation. I also worked on finishing my research paper. Because some of my sources were deleted that I researched, I had to go ba
Read more

Semester 2 - Week 13 Kierstin

  Lab time:  This week we did our pig head surgery simulation for our verification testing on surgical procedures, and if the device is mobile or not.  Our pig arrived in a box full of packing peanuts. It was very heavy and surprisingly very clean.  We unpackaged the head and placed it in our pre-prepared surgical location. We used trays and covered the table with sticky paper so it would be easy to clean, and nothing would get pig blood on it if it wasn't supposed to.  We started our surgery by suturing the eye so it looked away and giving us a clear spot to cut for the valve insertion. We put the suture through the sclera and then tied it around his ear so it wouldn't move during the surgical procedure.  We then cut the conjunctiva and created a pocket for the valve. I did the main cutting, Brinkley took pictures, and Alex helped give tools and be an extra hand in the surgery. We used scissors to cut it, and then players to create the pocket.  We inserted the valve into the p
