Semester 2 - Week 13 Kierstin

 Lab time:

This week we did our pig head surgery simulation for our verification testing on surgical procedures, and if the device is mobile or not.

Our pig arrived in a box full of packing peanuts. It was very heavy and surprisingly very clean.


We unpackaged the head and placed it in our pre-prepared surgical location. We used trays and covered the table with sticky paper so it would be easy to clean, and nothing would get pig blood on it if it wasn't supposed to.


We started our surgery by suturing the eye so it looked away and giving us a clear spot to cut for the valve insertion. We put the suture through the sclera and then tied it around his ear so it wouldn't move during the surgical procedure.

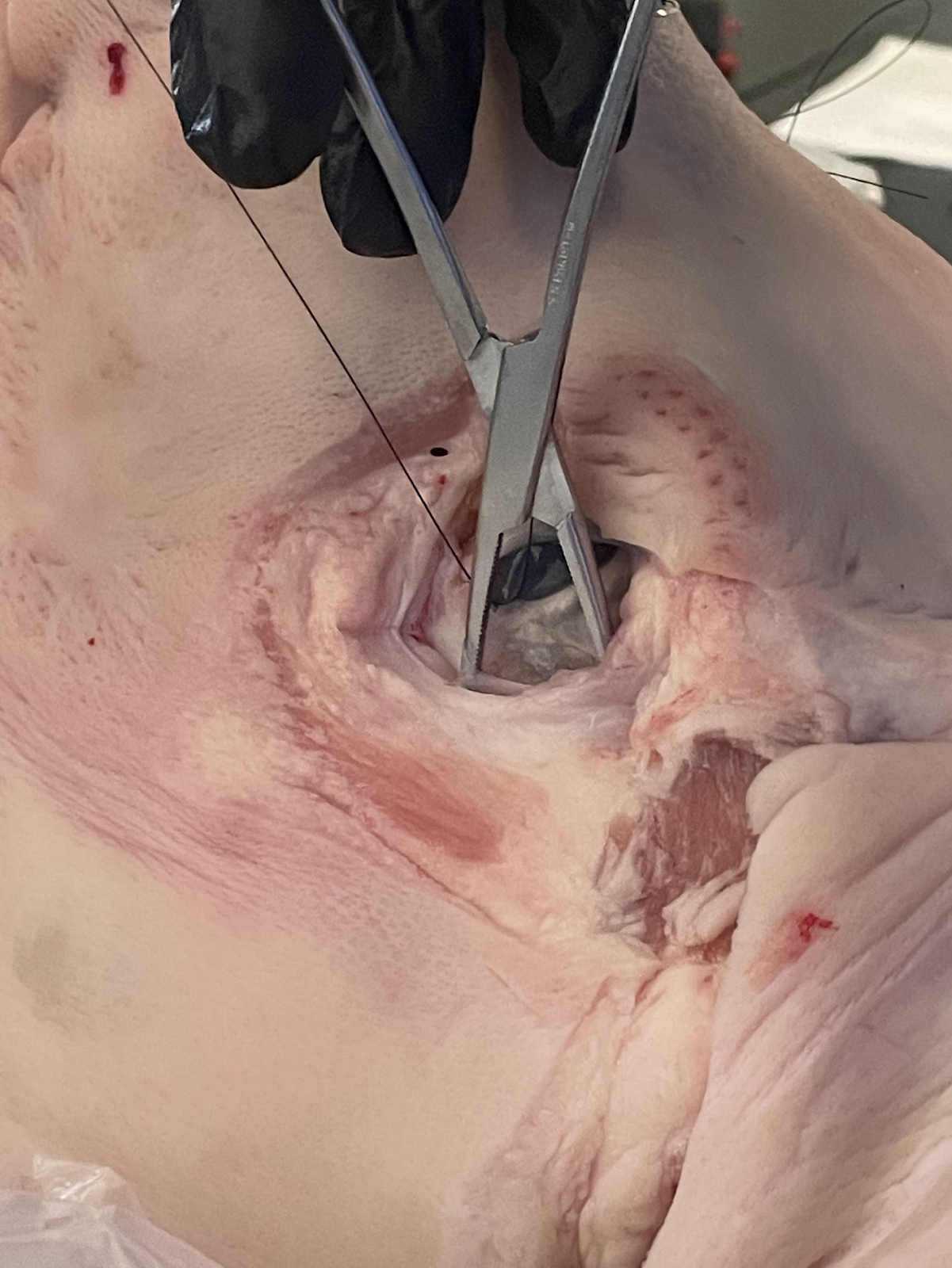

We then cut the conjunctiva and created a pocket for the valve. I did the main cutting, Brinkley took pictures, and Alex helped give tools and be an extra hand in the surgery. We used scissors to cut it, and then players to create the pocket.
We inserted the valve into the pocket and slid it as far back as we could. And then sutured it into place with just one suture, when normally there are two.

We then used the 23G needle to create a track and inserted the tube into the anterior chamber. This was the most difficult part. We got the tube in the track, but could not push it as far as we wanted into the anterior chamber.
The image below is the pig with the valve fully implanted. This surgery was not more complex, and the device is mobile because it can fit comfortably in the pig's eye.

This surgery verified that our product was not more complicated than other glaucoma surgeries today.


After the pig surgery, we did a deep clean of everything and disposed of the pig head. We cleaned up our station and cupboard so it is cleared for next year's team.

Final Preparations:
The rest of this week's work was done on PowerPoint. I inserted a lot of pictures and made some flow charts for the benchtop testing. I also inserted the images from SolidWorks. Many of these images had to be edited to fit the theme of the presentation. I also made slides that describe the steps of the glaucoma surgery that we simulated with the pig eyes and the pig head. I also worked to create a template to print the slides for the final presentation.

I also did my team evaluations. I think that everyone did a really great job this semester.
